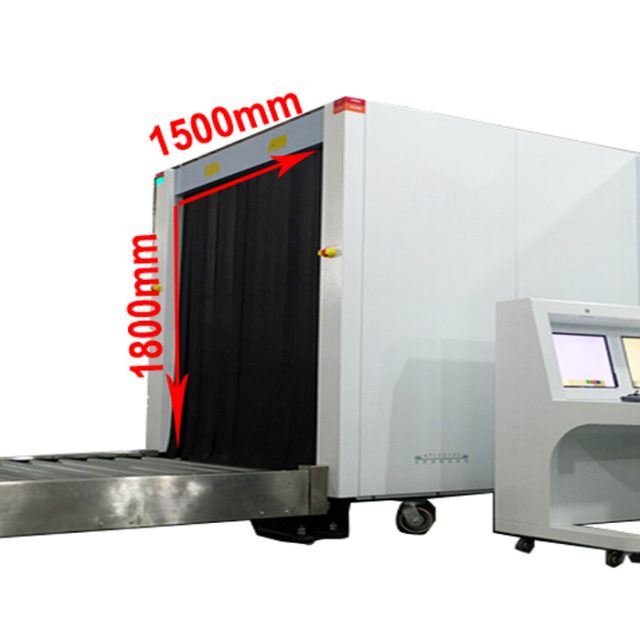

TS-150180 X Ray Baggage Scanner

TS-150180 X Ray Baggage Scanner Product Description

Airport Baggage Scanners

X Ray Baggage Scanner security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards
X Ray Baggage Scanner Work Principle

Equipment complete the examination by means of that belt making the baggage into the X ray inspection lanes. Luggage into the X ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X ray trigger signal,. After a bunch of X ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel. The X ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.

TS-150180 X Ray Baggage Scanner Specification:



1.display:19 inch(or bigger size) large industry screen display
2.the detector: bin song,Japan imported detector
3.single X ray source: the kernel is the America imported tube
4.the drum: linear Germany Yintono drum
5.belt: green belt of low noise
6.color: black and white, color, black and white contrast reversal
7.processing system: industrial grade DSP embedded processor
8.operation interface: floating, soft touch button operation
9.toolbox: one special toolbox
10.button keyboard and mouse: each one


Tunnel Size: 500(W)×300(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kg
X ray dose per each inspection: 1.5µGy
Wire Resolution: 0.0787mm metal line
Penetration: 32MM steel Penetration Resolution: dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm,15.9mm,22.2mm
Film Safety: Guarantee ASA/ISO1600 Film
Maximum leakage radiation: <0.01µGy/h Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 4096

The X ray baggage scanner is very important, we can use X ray baggage scanner to find smuggling or hidden contraband, on the other hand, ensure explosives, weapons, narcotics or weapons of mass destruction dangerous and illegal items not in the luggage, airport, factory or other place. According to different situations, for every luggage with unique features. So we can change operational requirements to fit in the situation.

The X ray baggage scanner offers a modern technology to secure the checkpoints of entry for important locations like airports, factory, transport terminals, buildings, and so on.The X ray baggage scanner is easy to install and maintain.

The X ray baggage scanner is so wide that we can see in aviation, critical infrastructure, customs and border protection, defense, event security, law enforcement, ports. About its Competitive Advantage, it is integrated, cost effective, turn-key security and fit for small luggage and parcels security dictation. Its reliable performance and uncompromising value is favored by China X ray baggage scanner distributor, as well as increased detection capability and friendly interface for ease-of-use.


* Multilingual operation

* Automatic built in test and self diagnosis

* Secure access Key

* Uninterruptible power supply (UPS)

* Threat alert and material classification

* Auto archiving

* Network-Ready

* Energy saving design

* One key turn off

* Drugs and explosives inspection

* Indication of the date and time

* baggage counter
